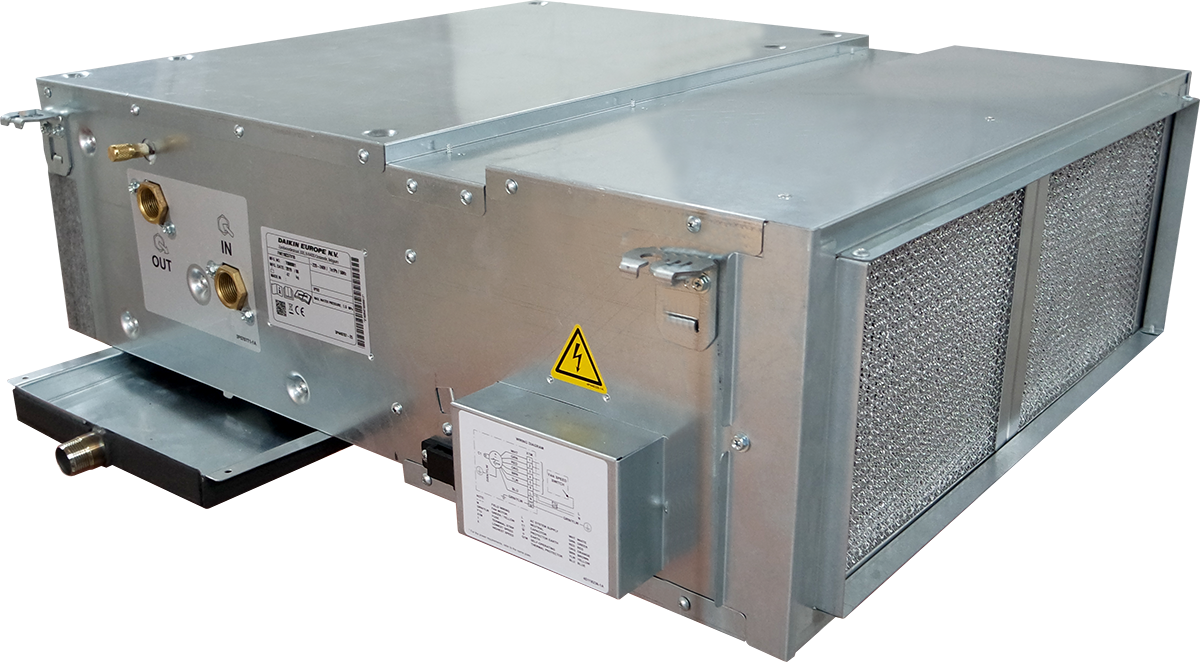

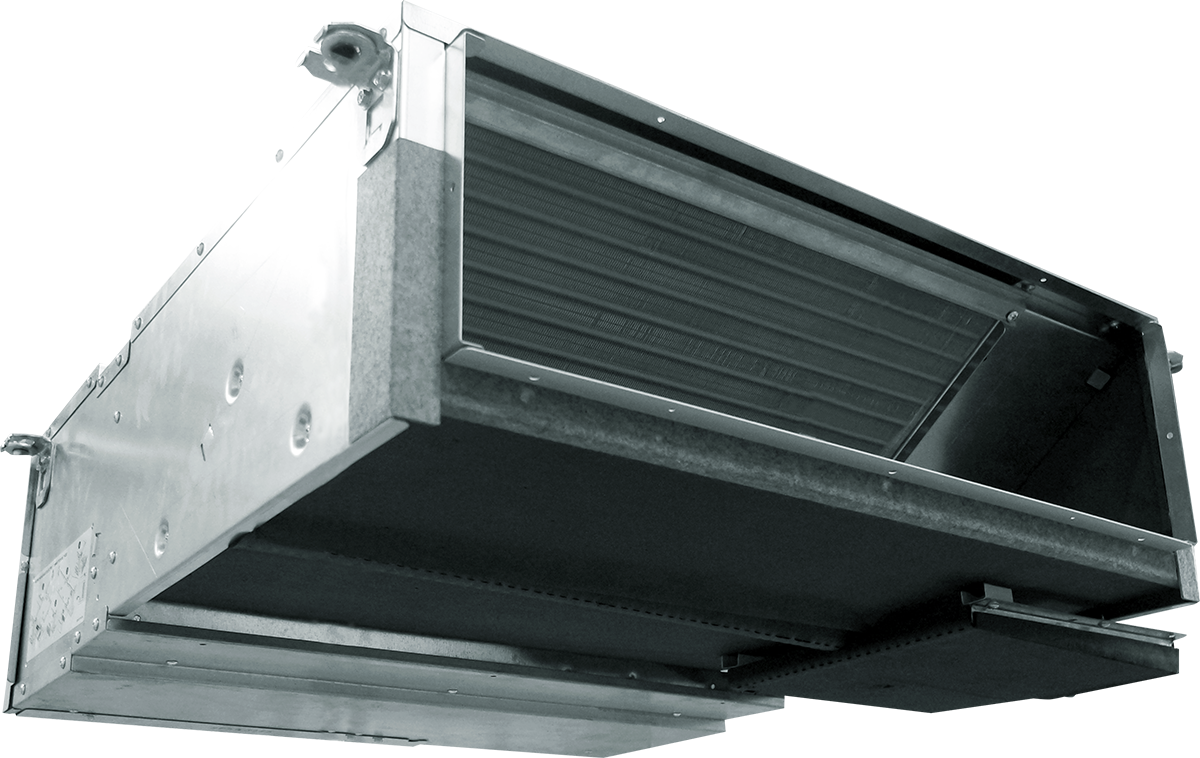

FWA-BAT

Concealed ceiling unit with medium ESP

AC fan motor unit for concealed flexi mounting

253 mm height for all capacities
6 fan speed for all models
Total cooling capacity range of 1-10 kW
Lower Heat Loss - Heat exchanger pipes are inside of the unit, all sides of the heat exchange recovered by thermal insulation
Class 0 Thermal Insulation (According to BS476)
Aluminum rhombus shaped fins develop by DAIKIN

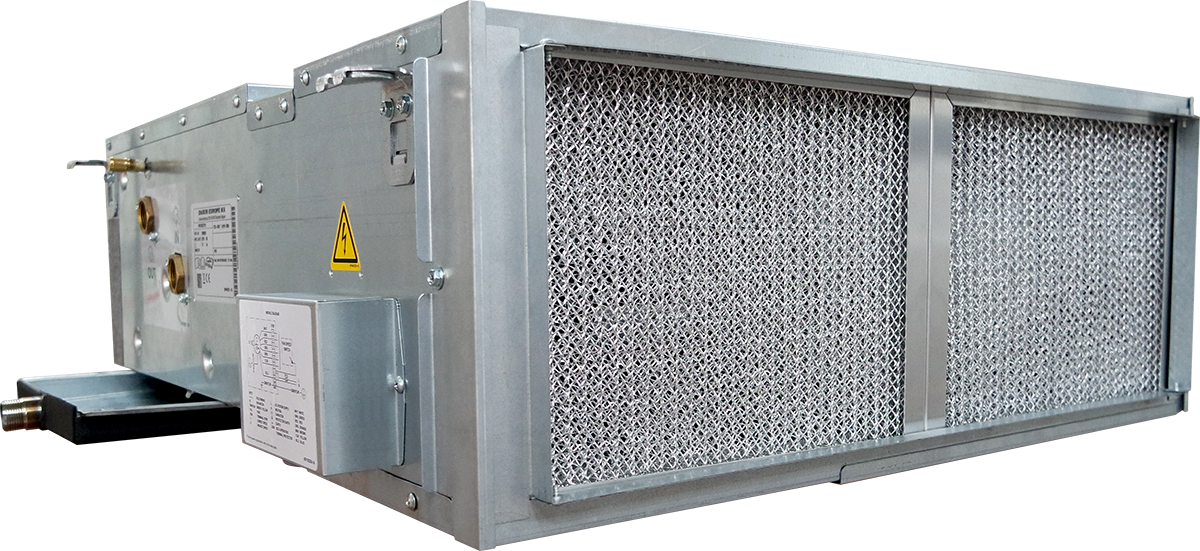

Aluminium Mesh Filter - Standard 1 inch (25mm) Al mesh filter
Easy Access to Filters - Bottom filter access of the unit is same with the unit direction/Filter covers can be remove easily, no need to remove screws
Corrosion Resistant Drain Pan - Galvanized steel sheet + Powder coating
High Strength Structure - Support plate on suction side provide additional reinforcement
Suction Side Sound Proof Insulation (Fan Insulation) - 10mm melamine foam
Serviceability - Open shape design provides easy installation
Flexibility - Drain pan position can be narrowed/Easier installation for small spaces
Flexibility - Terminal connection direction is changeable on the field. If wiring direction need to be opposite of the unit direction, this can be change on the field
Optional Electric Heater Box - From 1 kW to 5 kW heating capacity
